DN1000 installed in the Netherlands

The existing sewage pressure pipeline between the pumping station in the village of Volendam and the treatment plant in the village of Katwoude was due for replacement. Made of asbestos and technically outdated, the pipe could no longer meet the increasing discharge demands of the area. Additionally, its route through non-municipal gardens and under mature trees made maintenance challenging and disruptive. The solution? A new HDPE pipeline, rerouted through municipal land. This thoughtful re-routing minimizes disturbance to residents and ensures that Water Board Hollands Noorderkwartier can access and maintain the pipeline more efficiently and with less impact on the surrounding environment in the decades ahead.

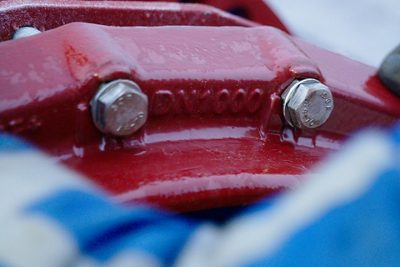

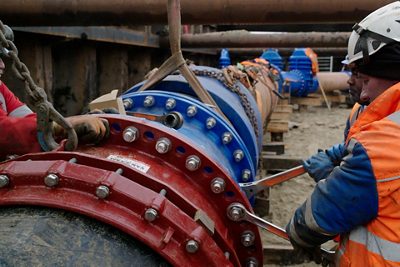

To minimize surface disruption, the new pipe system was installed using Horizontal Directional Drilling (HDD), a trenchless method ideal for long-distance, deep installations. To address the weak soil conditions below sea level, the pipeline and valve sections were mounted on piles. This ensures long-term stability. For maximum reliability and adaptability, the MULTI/JOINT® 3000 Plus DN1000 fitting was used. Its ability to cover up to eight degrees on either side allows flexibility in alignment and efficient handling of potential ground settlement.
