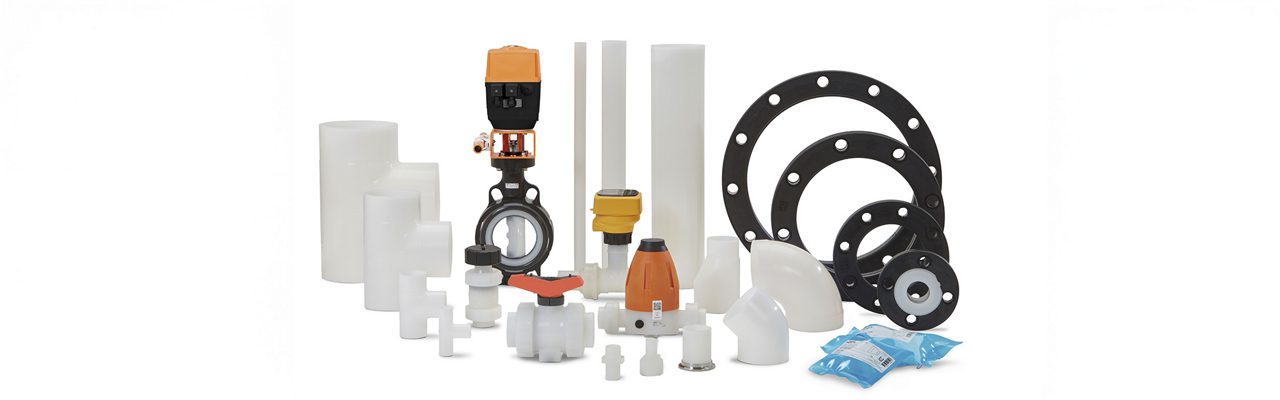

All SYGEF Plus components are particularly characterized by their incomparable quality properties. State-of-the-art ISO Class 5 (100) cleanroom production and double packaging ensure the highest level of purity. Thanks to continuous improvements, quality requirements of the SEMI F57 standard with regard to surface roughness is far exceeded. Seamless quality assurance using a CAQ system and regular leach-out tests guarantee 100% traceability.

value-bar-icon-2 Highest process security

In order to meet the highest purity requirements of our customers, the production and packaging processes of all SYGEF Plus components are carried out under Class 5 (100) cleanroom conditions. The SYGEF Plus “high-purity chain” guarantees 100%-monitored processes.

value-bar-icon-3 Verifiable quality

Each component undergoes a 100% visual inspection and offers full traceability from raw material through to the end product delivered to the customer. All data relating to quality is stored in an accessible way using a CAQ system.

value-bar-icon-1 Incomparable product properties

Using state-of-the-art manufacturing equipment and decades of experience in fluoropolymer cleanroom production, the quality requirements of the SEMI F57 with regard to surface roughness and leach-out are far exceeded.

value-bar-icon-6 Outstanding resistance

Ideal for use in cold and hot ultrapure water systems (UPW/HUPW) or high-purity chemicals in the microelectronics industry.

Diaphragm Valve 317

Large-scale pipes require a diaphragm valve with equally large dimensions, which is why the GF Piping Systems range includes the Type 317. Fitted with a graduated optical position indicator, the proven screw design provides excellent flow control.

Diaphragm Valve 514

Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 514 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The true union connection of the Type 514 allows for fast installation and exchange.

Diaphragm Valve 515

Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 515 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The spigot of the Type 515 allows for durable installation with no dead space.

Diaphragm Valve 517

Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 517 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The flange connection of the Type 517 allows for mechanical jointing to nearly everything.

Diaphragm Valve 519

Ideally suited to flow control and open/close duties, the Type 519 diaphragm valve is a three-way zero-static variant that can be used in a wide range of applications. Dead space is virtually eliminated around the valve thanks to the innovative design.

Diaphragm Valve DIASTAR 025

Large-scale pipes require a pneumatic diaphragm valve with equally large dimensions, which is why the GF Piping Systems range includes the Type 025. Fitted with an intuitive accessory interface, the proven screw design provides excellent flow control.

Diaphragm Valve DIASTAR Sixteen

Designed by GF Piping Systems for installation in high-pressure water applications, the DIASTAR Sixteen Diaphragm Valve maintains a stable temperature, has an excellent pressure rating and is extremely efficient. It is also the perfect solution for all high-purity and cleanroom applications.

Diaphragm Valve DIASTAR Ten

The ideal fail-safe diaphragm valve for standard applications, the DIASTAR Ten is highly resistant to chemical corrosion and suitable for use with abrasive media. Rotatable air connections make installation simple, while multiple accessories are available for enhanced performance.

Diaphragm Valve DIASTAR Ten Plus

For applications in which pressure is applied from both sides of the diaphragm valve, opt for the DIASTAR TenPlus. Like the DIASTAR Ten, this valve is easy to install, will not corrode and controls the system flow rate exceptionally well.

Adapters & Transitions

Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.

Bends & Elbows

Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.

Caps & End Caps

Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.

Flange Connections

Flange connections are often the best mechanical connection between pipe segments or for installing valves up to very big dimensions.

Installation Fittings

GF Piping Systems has an extensive range of installation fittings available in a wide range of materials, ensuring secure and accurate positioning of sensors and electrodes for exceptional performance. The fittings match perfectly with all GF Signet products and are key for the easy installation of measurement equipment.

Reducers

Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.

Tees, Y-Pieces & Crosses

When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.

Unions

Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust.

Pressure Reducing Valve 582

Durable, dependable and simple to use, the Type 582 Pressure Reducing Valve’s design reduces the pressure on the outlet of the valve. It is used to reduce higher pressure from main lines or to protect sensitive devices from being damaged by too much pressure.
