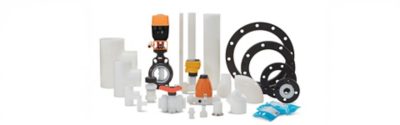

SYGEF® Plus provides the best solution for conveying Ultrapure Water (UPW) for manufacturers. The overall UPW system integrity is assured from source to point of use by the complete integration of SYGEF® Plus PVDF products and associated jointing technologies. Adhering strongly to accepted standards such as SEMI, SEMATECH, ISO and DIN, we control the entire process from the injection moulding of the fittings and valves, to the extrusion of the pipe as well as the design and construction of the fusion equipment.
- d20 - d450 mm ( ½" - 18")
- d20 - d225 mm: PN16 (232 PSI)
- d90 - d450 mm: PN10 (150 PSI)
- -20°C - 140°C (-4°F - 284°F)
- Polyvinylidene Fluoride (PVDF)
In order to meet the highest purity requirements of our customers, the production and packaging processes of all SYGEF Plus components are carried out under Class 5 (100) cleanroom conditions. The SYGEF Plus “high-purity chain” guarantees 100%-monitored processes.
Each component undergoes a 100% visual inspection and offers full traceability from raw material through to the end product delivered to the customer. All data relating to quality is stored in an accessible way using a CAQ system.
Using state-of-the-art manufacturing equipment and decades of experience in fluoropolymer cleanroom production, the quality requirements of the SEMI F57 with regard to surface roughness and leach-out are far exceeded.
Ideal for use in cold and hot ultrapure water systems (UPW/HUPW) or high-purity chemicals in the microelectronics industry.
Sturdy and lightweight, plastic pipes are ideal for use in a wide range of applications. Versatile yet durable, these all-rounders offer exceptional reliability and proven quality.
Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.
Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.
Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.
Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded or mechanically connected to create a pressure-tight joint.
Flange connections are often the best mechanical connection between pipe segments or for installing valves up to very big dimensions.
GF Piping Systems has an extensive range of installation fittings available in a wide range of materials, ensuring secure and accurate positioning of sensors and electrodes for exceptional performance. The fittings match perfectly with all GF Signet products and are key for the easy installation of measurement equipment.
Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.
When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.
Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust.
Fixpoint fittings are used for the correct design and installation of a piping system. Various solutions for all relevant applications are available.
Lightweight, robust and with compact dimensions, the Laboratory Ball Valve 322/522 is ideal for use in applications where space is at a premium. It is extremely easy to install and available in metric and imperial configurations.
Intended for use in numerous applications from chemical processing to water treatment, GF Piping System offers a wide range of diaphragm valves. This includes manual, pneumatic and electric operation combined with all plastic and diaphragm materials.
Ideally suited to flow control and open/close duties, the T-diaphragm valve is a zero-static valve that can be used in a wide range of applications. Dead space is virtually eliminated around the valve thanks to the innovative design.
Durable, dependable and simple to use, the Type 582 Pressure Reducing Valve’s design reduces the pressure on the outlet of the valve. It is used to reduce higher pressure from main lines or to protect sensitive devices from being damaged by too much pressure.
This lug style butterfly valve has an epoxy- or Rilsan-coated ductile cast iron housing. It can be used as an end or intermediate valve. If the valve is used at the end of a line, the maximum pressure is 5.6 bar for DN50 to DN100 and 3.5 bar above DN200.
The Type 065 Butterfly Valve can be used universally as a shut-off or control valve in high purify water treatment or water filtration applications
Paddlewheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance.
GF Signet Magmeters are versatile, easy-to-install sensors with no moving parts and patented Magmeter technology.
Variable area flow meters are used to measure flows in industrial piping applications. They offer a wide range of measurement options for a variety of situations.
Original, high-quality spares parts for GF Piping Systems systems and products. Spare parts are available throughout the lifecycle of your system and available in an agreed timeframe.
We provide a wide range of accessories to support your installation projects. Accessories are available for use throughout the life-cycle of your system and available in an agreed time-frame.
