Requirements
ASTM D2513, ASTM F2509, ASTM F1948, DOT/CFR Part 192 and ANSI B1-20.1
Certificate: IAPMO & CSA B137.4
Reference Documents: NFPA 58, PPI TR-19, ANSI B31.8 and UL 360
Features & Benefits
- SurSeal service head risers feature a positive stop nut design; eliminating the need for torque requirements
- Easily assembled on-site with a pipe or adjustable wrench
- The molded rubber gasket forces the cold flow of plastic tubing for unmatched holding force
- One solid service line from main to above-ground connection
- Eliminates underground connections
- Self-aligning integral grooved stiffener

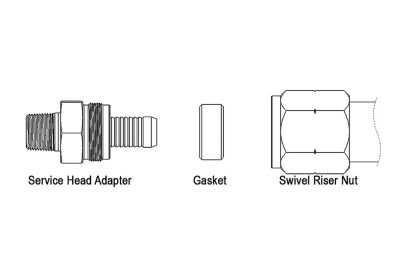

How to use SurSeal® Service Head Adapter Riser
Stab Depth Chart
Pipe Size
Stab Depth
Wall
| Pipe Size | Stab Depth | Wall |
| 1/2 CTS | 7/8" | 0.090" |
| 3/4 IPS | 1" | DR11 |
| 1 CTS | 1" | 0.099" / 0.102" |
| 1 IPS | 1-1/4" | DR11 |
| 1-1/4 IPS | 1-1/4" | DR10 |
| 1-1/4 IPS | 1-1/4" | DR11 |
| 1-1/2 IPS | 1-3/8" | DR11 |
| 2 IPS | 1-1/2" | DR11 |
Part Numbers
Part Number
Description
| Part Number | Description |
| 360003955 | SHA RISER,FLEX,0.5,MPT,0.5,CTS,.090,36FLEX |
| 360003952 | SHA RISER,FLEX,0.75,MPT,0.5,CTS,.090,36FLEX |
| 360003999 | SHA RISER,FLEX,0.75,MPT,0.75,IPS,DR11,36FLEX |
| 360004079 | SHA RISER,FLEX,0.75,MPT,1,CTS,.099/.102,36FLEX |
| 360004000 | SHA RISER,FLEX,1,MPT,0.75,IPS,DR11,36FLEX |
| 360004130 | SHA RISER,FLEX,1,MPT,1,CTS,.099/.102,36FLEX |
| 360004164 | SHA RISER,FLEX,1,MPT,1,IPS,DR11,36FLEX |
| 360004134 | SHA RISER,FLEX,1.25,MPT,1.25,IPS,DR11,36FLEX |
| 360004140 | SHA RISER,FLEX,1.25,MPT,1.25,IPS,DR10,36FLEX |
| 360004150 | SHA RISER,FLEX,1.5,MPT,1.5,IPS,DR11,36FLEX |
| 360004160 | SHA RISER,FLEX,2,MPT,2,IPS,DR11,36FLEX |
| 360004001 | SHA RISER,FLEX,0.75,MPT,O.75,IPS,DR1,84FLEX |
| 360004169 | SHA RISER,FLEX,0.5,MPT,O.5,CTS,.090,84FLEX |
