Electrofusion Marco

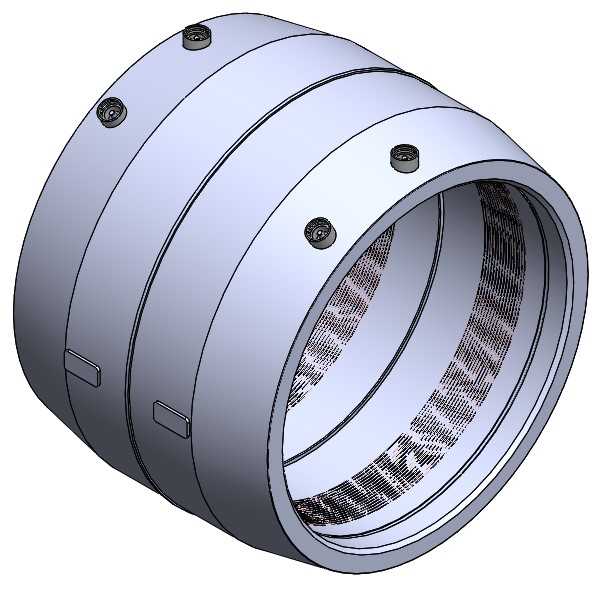

The 12 IPS DR11 Electrofusion MARCO Dual Zone Coupling allows independent fusion cycles to be accomplished on one side of the coupling at a time. A primary advantage is the ability to configure fittings in a shop or above-ground environment with critical fusion completed before final tie-in at installation. The construction exceeds the performance requirements of ASTM F1055 and ASTM B2513 and can be installed at temperatures -10°F to +120°F.

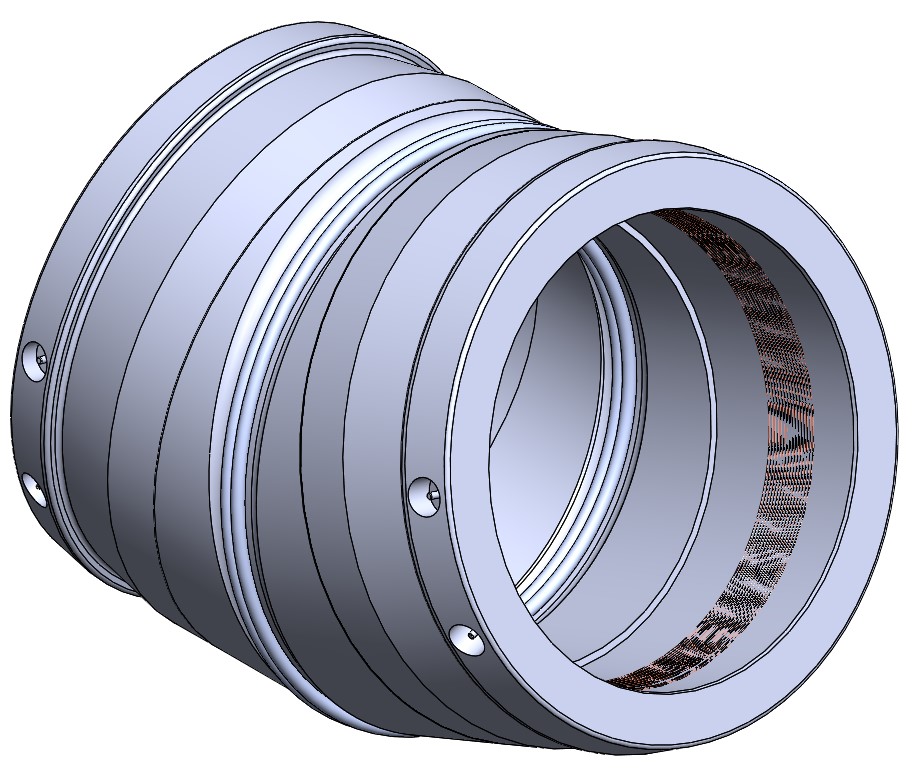

The 12 IPS DR11 EF MARCO 22.5° Elbow is a fully pressure rated elbow design with dimensions for installation in confinded spaces. This fitting allows for independent fusion cycles to be accomplished on one side of the elbow at a time. The construction exceeds the performance requirements of ASTM F1055 and ASTM D2513 and can be installed at temperatures -10°F to +120°F.

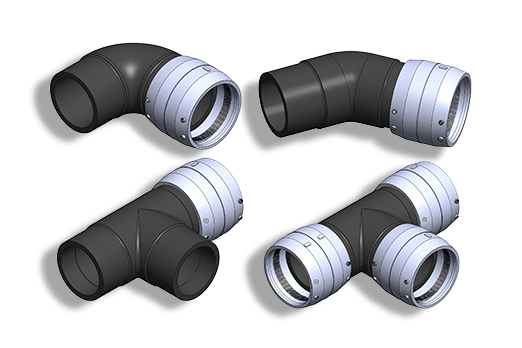

The 12 IPS DR11 Electrofusion Optional MARCO Configurations are factory-fused joints. Each configuration utilizes the Dual Zone Coupling. A primary advantage is the ability to configure fittings in a shop or above-ground environment with critical fusions completed before the final tie-in at installation.
