SYGEF ECTFE

Beyond endurance - ECTFE system for safe, efficient transport of highly concentrated media under high pressure and temperatures.

Download Brochure Speak to an Expert

When conveying aggressive chemicals such as concentrated sulfuric acid (H₂SO₄) and hydrogen peroxide (H₂O₂) with pressure and temperature conditions, the capabilities of many plastic piping systems can be quickly exceeded. At the same time, lined steel piping systems have challenges due to the labor intensive joining procedures, high weight, and susceptibility to exterior corrosion.

In contrast, the ECTFE from GF Piping Systems' SYGEF family was designed speciﬁcally as a robust solution for extreme chemical applications. User's beneﬁt from quick assembly, a long system service life, and lower cost of ownership. GF Piping Systems ensures the reliability of ECTFE systems through its use of advanced infrared (IR) welding technology. Fusion welding machines join the components in a consistent, repeatable, and documented manner, so that ECTFE systems offer the highest quality of piping systems.

Downloads
Success Stories
Benefits
Products
Solutions

Success Stories

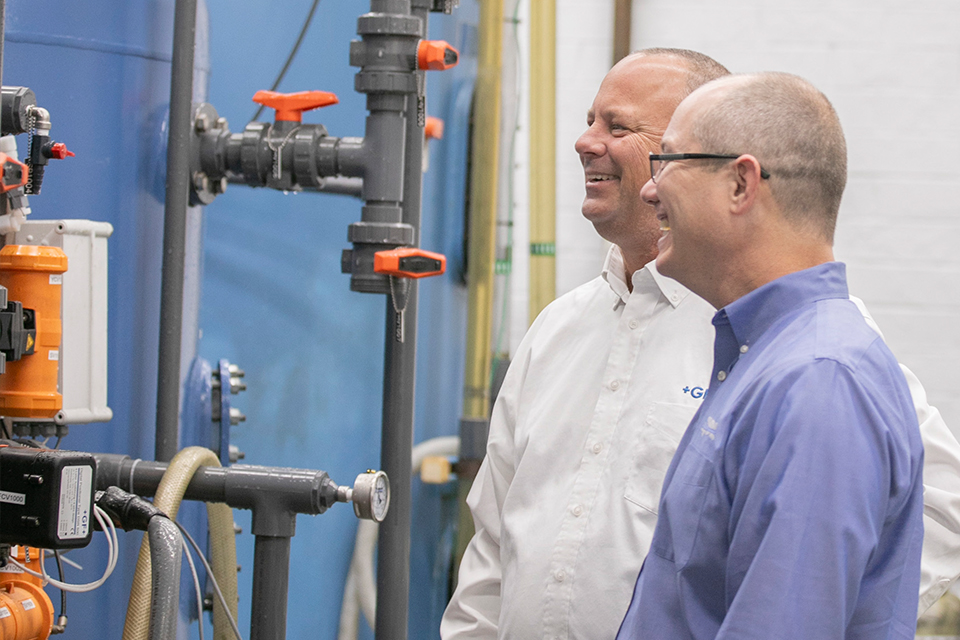

HYDRO Designs Advanced Water Purification Systems with GF

Research Triangle Park, North Carolina

GF Piping Systems has been a trusted partner of HYDRO for over 40 years, supporting their commitment to providing the highest quality water purification solutions. Focused on improving lives through clean, purified water, HYDRO serves a diverse range of industries including academia, research, life sciences, data centers and micro electronics, supporting their commitment to providing the highest quality water purifications solutions.

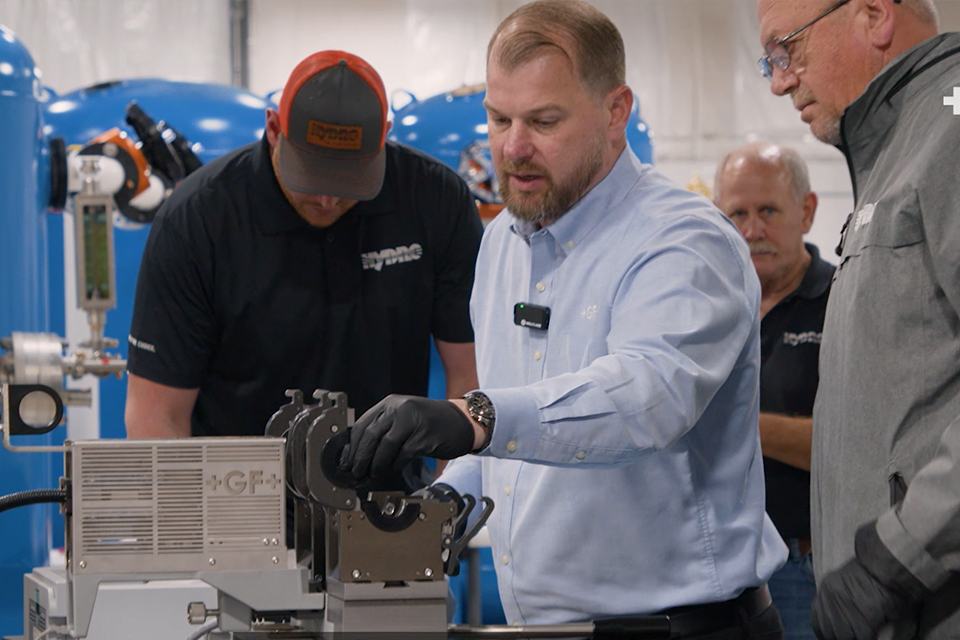

Certified Infrared (IR) Training

Reasearch Triangle Park, North Carolina

The GF training program includes five regional trainers located across the U.S., each responsible for a specific territory. We travel to your location to deliver hands-on instruction. Our training is available to contractors, non-contractors, engineers, and end users through the GF Academy platform. The program covers a variety of specialized courses, including IR training, trench machine operation, contact butt fusion, and socket fusion techniques.

Watch Video

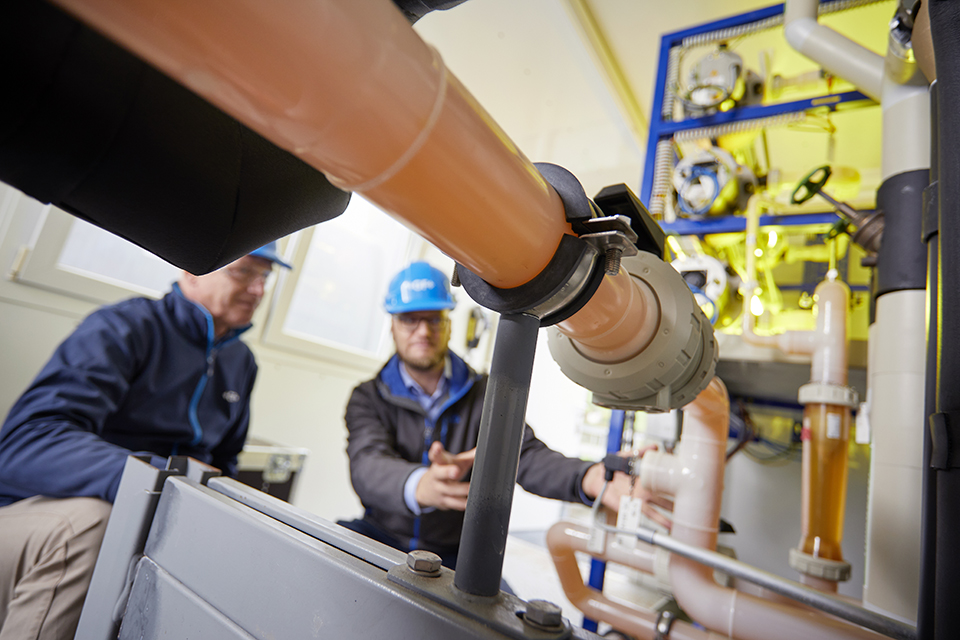

SYGEF ECTFE enables a reliable neutralization of chemicals

Merck & Cie, Switzerland

Merck & Cie. is a subsidiary of the German group Merck KGaA and specializes in the Healthcare and Life Science sectors. With several facilities across Switzerland, the company produces high-quality products for the global market. In the field of wastewater treatment, plastic piping systems are used to safely and reliably transport hazardous media. Here, Merck relies on the SYGEF ECTFE system by GF Piping Systems.

Beyond Endurance

All SYGEF ECTFE components offer extraordinarily good corrosion and permeation resistance while guaranteeing absolute reliability. Even with highly concentrated media under high process pressures and temperatures, the system boasts the highest chemical resistance with maximized system service life. This helps to minimize costs for service and interruptions. The high-performance raw material allows for use in the temperature range between -103°F (-75 °C) and 266°F (130°C).

Please accept all cookies to view the youtube video content.

Your benefits at a glance

200% higher pressure range

Due to its excellent mechanical properties, ECFTE allows a 200% higher pressure range than PFA. This provides users with more efficient processes and higher safety standards.

20% more efficient pipe volume

Thanks to its high mechanical stability, the wall thickness of the ECTFE has optimal SDR and is 20% more efficient compared to PFA. Thereby the system enables higher flow rates with equal or less space requirements.

85% faster assembly

The ECTFE components are securely connected in a few minutes using most advanced IR-welding technology. Compared to pipes made of lined steel, installation time is significantly reduced.

Benefits

Maximum Safety

For particularly demanding chemical applications, all system components, including jointing technologies, have been tested and confirmed under laboratory conditions. The influences of human error are minimized through the use of automated IR fusion technology.

Extremely Reliable

Maximum reliability is achieved through the combination of material properties, tempered pipes, fluoropolymer expertise and extensive approval testing, including with highly concentrated chemicals such as H2SO4.

Long Service Life

Cost-efficient process control is achieved thanks to the many years of excellent chemical and temperature resistance. Lower initial costs compared to conventional alternatives and faster installation times reduce overall project costs.

Efficient Pipe Volume

Thanks to an optimum wall thickness ratio to nominal diameter (SDR), the superior mechanical properties of the ECTFE system enable particularly efficient processes with high pressure and flow characteristics.
