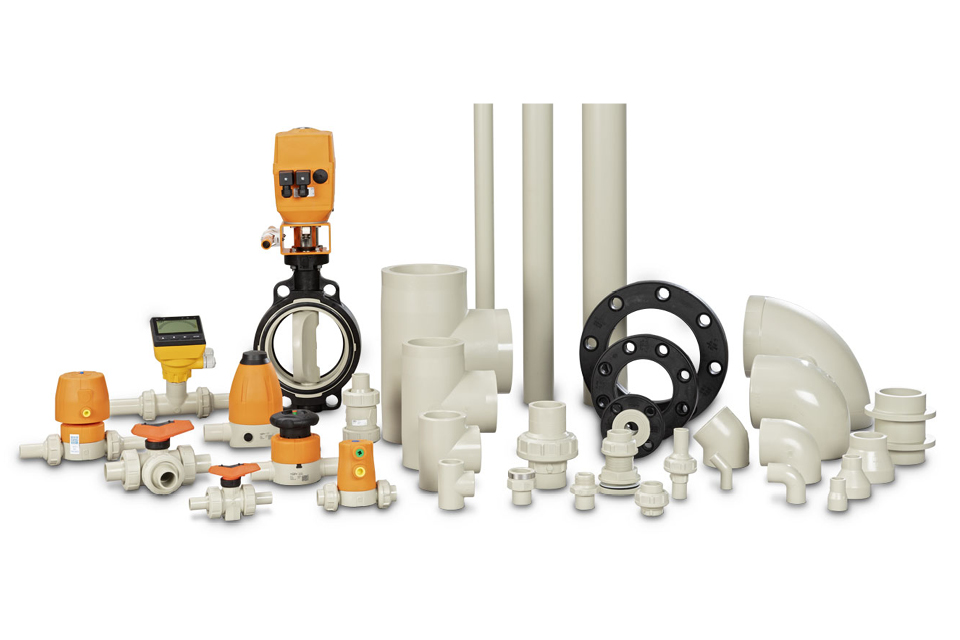

PROGEF Standard products offer high-stress crack resistance as well as pressure, abrasion, corrosion and temperature resistance up to 80°C. The durable properties of the polypropylene system ensure great economic benefits. The uniform material structure also provides optimum weldability and heat distortion resistance.
The uniform material structure provides optimum weldability and heat distortion resistance.
In a dimension range from d16 to d500, PROGEF Standard offers a virtually unlimited choice for individual applications.
The use of PROGEF Standard systems in chemical processes offers economic benefits.
Use of the polypropylene system meets the requirements of industry, production and transport of chemical media.
Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.
Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.
For rapid, reliable and high-quality butt fusion joints, look no further than the GF Piping Systems range of innovative, easy-to-use butt fusion machines.
A modular design and an intelligent yet simple operating principle make the GF Piping Systems Type 567 butterfly valve the perfect addition to any set-up. This wafer-style butterfly valve is made of highly durable, corrosion-resistant plastic and can be installed with ease.
GF Piping Systems Type 578 butterfly valves with high corrosion resistance are perfect for use in chemical processing and industrial water treatment. Their versatile design minimizes torque and allows them to be used as a wafer-style or lug-style valve.
Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.
Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded or mechanically connected to create a pressure-tight joint.
Large-scale pipes require a diaphragm valve with equally large dimensions, which is why the GF Piping Systems range includes the Type 317. Fitted with a graduated optical position indicator, the proven screw design provides excellent flow control.
Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 514 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The true union connection of the Type 514 allows for fast installation and exchange.
Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 515 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The spigot of the Type 515 allows for durable installation with no dead space.
Intended for use in numerous applications from chemical processing to water treatment, GF Piping Systems Type 517 diaphragm valves offer very linear flow characteristics with the highest flow rate available on the market. The flange connection of the Type 517 allows for mechanical jointing to nearly everything.
Ideally suited to flow control and open/close duties, the Type 519 diaphragm valve is a three-way zero-static variant that can be used in a wide range of applications. Dead space is virtually eliminated around the valve thanks to the innovative design.
The compact and pneumatic Type 604/605 diaphragm valve is designed for high cycle frequency. They are extremely resistant to corrosion, leakproof and maintenance-free, and can also be installed in confined spaces.
Large-scale pipes require a pneumatic diaphragm valve with equally large dimensions, which is why the GF Piping Systems range includes the Type 025. Fitted with an intuitive accessory interface, the proven screw design provides excellent flow control.
Engineered specifically for low-pressure applications, DIASTAR Six diaphragm valves are a cost-effective solution wherever top reliability, zero corrosion and optimized flow are required. The compact dimensions make them easy to install and remove.
The ideal fail-safe diaphragm valve for standard applications, the DIASTAR Ten is highly resistant to chemical corrosion and suitable for use with abrasive media. Rotatable air connections make installation simple, while multiple accessories are available for enhanced performance.
For applications in which pressure is applied from both sides of the diaphragm valve, opt for the DIASTAR TenPlus. Like the DIASTAR Ten, this valve is easy to install, will not corrode and controls the system flow rate exceptionally well.
Flange connections are often the best mechanical connection between pipe segments or for installing valves up to very big dimensions.
Efficiency is the defining feature of the GF Piping Systems type V141 float valve, which is designed to automatically control a system’s fluid level. Integrated seals ensure safe operation, while robust housings minimize maintenance.
GF Piping Systems has an extensive range of installation fittings available in a wide range of materials, ensuring secure and accurate positioning of sensors and electrodes for exceptional performance. The fittings match perfectly with all GF Signet products and are key for the easy installation of measurement equipment.
Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.
Designed to protect sensitive components in piping systems, strainers filter out pollutants from the media. This extends the system’s service life, reduces maintenance, improves operation and minimizes additional expenditure.
Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust.
Intended for use in aeration systems, the Ventilating Valve Type 595 ensures safe venting of liquids and gases in the event of negative pressure. This valve is easy to install, while the robust materials and excellent reliability minimize maintenance.
Light, compact and available for a range of piping configurations and tanks, GF Piping Systems Ventilating & Bleed Valve Type 591 ensures reliable venting of liquids and gases, preventing media backflow and jamming.
The electric diaphragm valve e-Diastar allows simple automation without compressed air. Benefit from short downtimes thanks to fast and easy re-installation or retrofitting of manual diaphragm valves and lower maintenance costs. Please contact us, our energy experts will be glad to advise you.
Sturdy and lightweight, plastic pipes are ideal for use in a wide range of applications. Versatile yet durable, these all-rounders offer exceptional reliability and proven quality.
Large installations require a valve that is simple to insert and maintain, which is why GF Piping Systems developed the Wafer Check Valve Type 369. It can be installed horizontally or vertically and guarantees excellent flow characteristics.
The Cone Check Valve 561/562 is designed to prevent the backflow of media into sensitive systems. This valve minimizes pressure loss and comes with a special seal to guarantee leakproof operation.
When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.
The new generation with standard lockable lever, data matrix code and modular design guarantees long-term sustainability. The Ball Valve 546 Pro meets every challenge and application, including simple water applications or complicated processes in the chemical industry, microelectronics or food and beverage industry.
The manual Ball Valve type 542 offers uncompromising quality and is available in various materials and connection variants. It is ideal for use in everything from simple water applications to manual applications in demanding processes.
The Ball Valve type 543 is the ideal valve for all mixing and distribution processes, including redirecting, mixing, distributing or even shutting off a medium in areas of application within the chemical process industry, microelectronics or water applications.
The advantage of Ball Valve type 523 is exact dosing of small quantities of media. Its circular scale and specially shaped ball enable precise dosing. It serves for small volumes for which a linear flow is required and a sudden increase in flow are not.
Durable, dependable and simple to use, the Type 582 Pressure Reducing Valve’s design reduces the pressure on the outlet of the valve. It is used to reduce higher pressure from main lines or to protect sensitive devices from being damaged by too much pressure.
The V82 Pressure Reducing Valve is made of durable, corrosion-free plastic and contains an actuator that is hermetically sealed against aggressive media in the pipe system. The innovative design allows it to be installed in virtually any position. This valve is also made for pipes of bigger dimensions.
Also known as an overflow, safety or backpressure valve, the Type 586 Pressure Retaining Valve works to keep the pressure at the valve inlet constant at all times, thereby ensuring problem-free operation. Made of fully molded, high-grade plastic, this is an intelligent addition to any piping system.
The V86 Pressure Retaining Valve works to keep the pressure at the valve inlet constant at all times, ensuring problem-free operation of the system as a whole. It is made for pipes of larger dimensions.
