Aware of the challenging conditions installers face, we are introducing into the market a new tool that is redefining the way that precise cuts are done. Saving time and costs on the overall installation by increasing the standards of safety, all in a flexible, compact, and light solution.

GF Piping Systems’ new cutting tool has been developed in collaboration with TRUMPF, one of the global leaders in power tools for industrial and construction sectors, to provide a comprehensive solution for installing distribution and cooling systems (ELGEF Plus, ecoFIT- and COOL-FIT) in their most-demanded dimensions.

The mechanics of the saw unit (saw chain and blade) operate oil-free and thus prevents possible contamination in the subsequent welding zone. Due to the chosen design, large different wall thicknesses are covered with a single solution. The low weight and packing volume allows transport and operation by only 1 person.

value-bar-icon-3 Precision

A guiding system with cross-dimensional tensioning belt fixes the saw unit at a 90° cutting angle and guides it precisely around the circumference of the pipe.

value-bar-icon-1 Broad application

One tool to serve all pipe sizes: Covers all dimensions of pipes from d250 to 1200mm (10” – 46”), including wall thickness variation from 10mm to 180mm.

value-bar-icon-2 Easy on-site handling

The lightweight of the components -less than 5 kg in total- facilitates positioning even in hard-to-reach places in the trench or roof-top.

value-bar-icon-1 Extra safety

The 2-handed start, the snap-on locking mechanism and additional safety sensors meet the highest safety requirements, which complement the radial guided radial around the pipe.

PE CUT
Cordless

Battery-powered, so no cables are close to the blade while operating and electricity on remote sites.

Reliable

Built up with high-quality components from renowned globally active manufacturers, ensuring the availability of worn parts and a long life span.

Reduced cost of ownership

Only one machine is required for the entire application range, compared to the current solutions on the market of providing sets of machines.

Videos

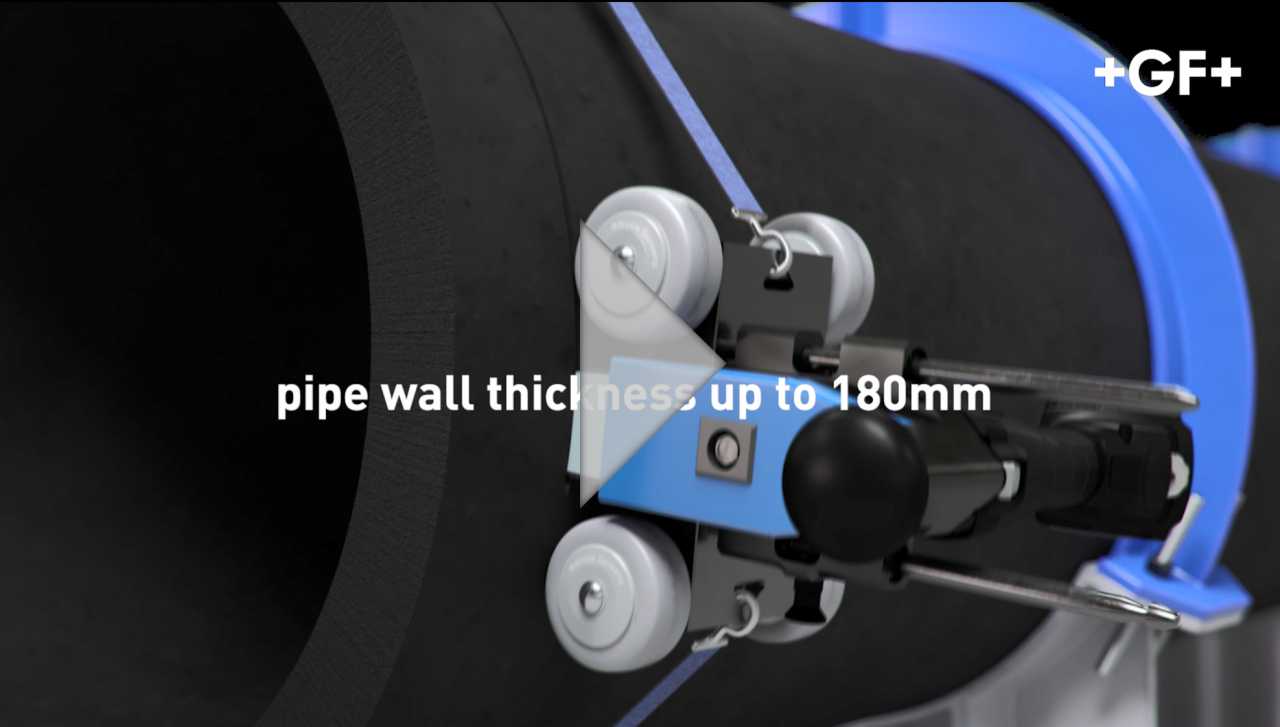

Campaign video

Aware of the challenging conditions installers face, we are introducing into the market a new tool that is redefining the way that precise cuts are done. Saving time and costs on the overall installation by increasing the standards of safety, all in a flexible, compact, and light solution.

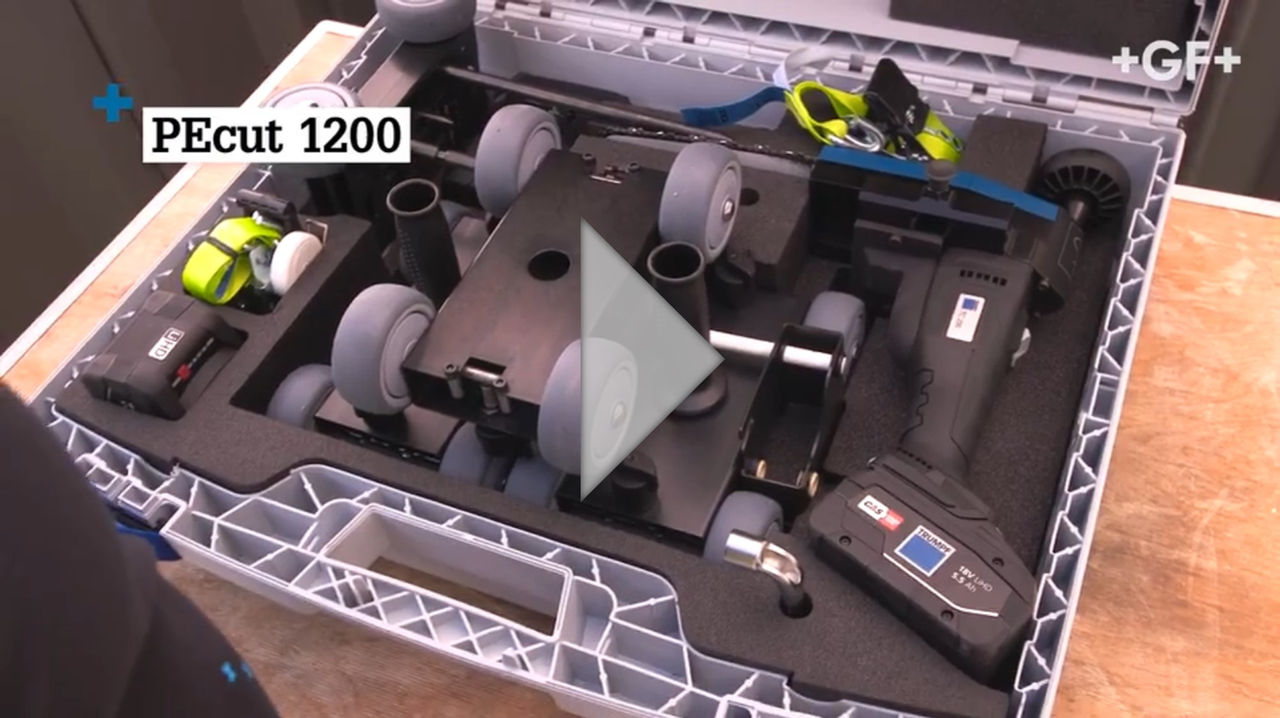

Installation video

Learn more about the easy installation of our PEcut 1200 and watch the installation video.
