COOL-FIT® PE Plus

Embrace the cold - extreme cooling confidence with pre-insulated plastic piping systems. COOL-FIT® PE Plus increases the efficiency of your cooling circuit and is a more sustainable alternative to metal piping systems.

Speak to an Expert

Pre-insulated Plastic Piping Systems

Make your cooling circuit more efficient with robust pre-insulated plastic piping systems. COOL-FIT is an innovative piping system including pipes, fittings, valves, flexible hoses, and tools, aimed at ensuring complete system integrity. Designed and optimized for fast and easy installation and expected to provide at least 25 years of operations with zero interruptions and maintenance. The reliable and efficient alternative to post-insulated metal piping systems.

.

Benefits

Extreme Efficiency

The high-grade pre-insulation in COOL-FIT significantly enhances thermal energy efficiency by maintaining a consistently sealed cooling circuit and minimizing energy loss, outperforming traditional post-insulated metal piping systems.

Confident Insulation

Robust build pre-insulated pipes, fittings, valves, and flexible hoses vapor sealed with rigid, closed-cell insulation foam and sealing lip. The highly resistant HDPE outer jacket protects the insulation foam and provides an additional layer of insulation.

Extreme Reliability

Thanks to its material properties, COOL-FIT is condensation and corrosion-free, and longer-lasting than metal alternatives. Also, incrustation is no longer a problem, contributing to maintenance-free operations with a minimum lifespan of 25 years.

Confident Installation

COOL-FIT weighs 60% less than post-insulated steel or copper systems. The simple electrofusion jointing reduces installation time by 50%. Single-person installs are possible and installations in confined spaces are easy.

Portfolio

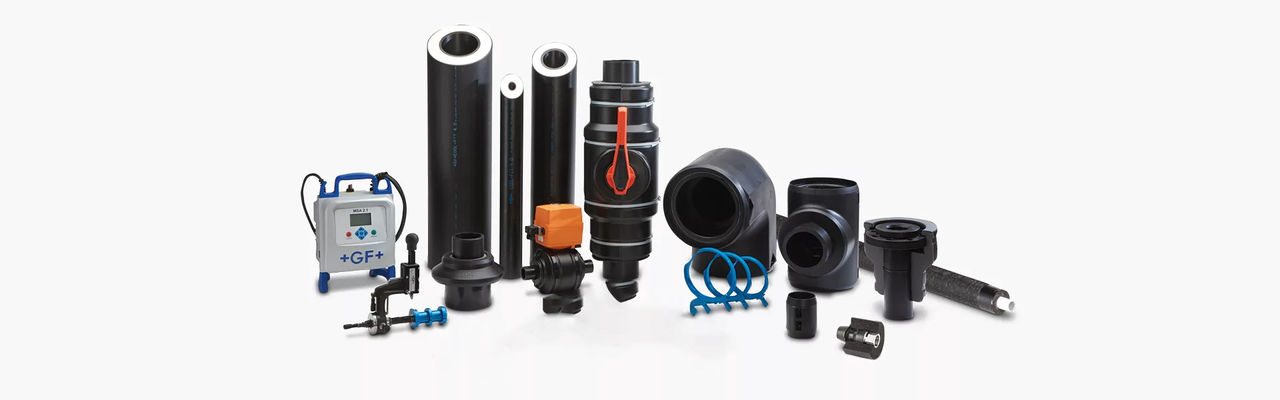

COOL-FIT® PE Plus

As a complete pre-insulated plastic piping system, COOL-FIT® PE Plus optimizes any commercial or industrial refrigeration set-up in food and beverage applications and any outdoor installation.

Future updates: subscribe to COOLnews

Subscribe to our cooling newsletter to get regular updates (4 times a year) on the latest videos, applications, resources and events.

Learn more

3-in-1 Concept

Media Pipe

The medium carrying PE100 inner pipe material ensures corrosion and incrustation-free operations. The system is available in dimensions from d16 (0.63 inches) up to d450 (about 18 inches) and can resist pressure up to 16bar (232 psi) at a media temperature of 20°C (68°F).

Insulation

Depending on the COOL-FIT® system, the nominal GF PUR insulation foam thickness is 20mm (0.79 inches) or 40mm (1.57 inches). The insulation supports reliable temperature conditions from -50°C (-58°F) up to +60°C (+140°F).

Pipe Jacket

The HDPE jacket of the COOL-FIT pipes makes the piping system very robust, protecting the GF PUR insulation foam and providing an extra layer of insulation.

Installation

Installing COOL-FIT pipes, fittings and valves is fast and simple thanks to the pre-insulated system components and the electrofusion technology. The installation process takes only a few minutes and the MSA welding equipment from GF Piping Systems ensures a secure connection.

1. Welding wires and electrofusion unit

Designed for fast and easy installation, the electrofusion unit is connected to the installation with welding wires and is suitable for manual or remote start the welding process.



2. Welding indicator and tracking code

The tracking code can be scanned and helps with a guided and tracked welding process. For optic or haptic inspection after welding, the welding indicator retracts automatically after successful welding.

3. Pipes and fitting with sealing lip

For fast installation, COOL-FIT pipes are prepared in 5m bars. For shorter sections, the pipes can easily be stripped and peeled. The pre-insulated fittings with sealing-lip ensure a vapour sealed piping system.

4. Fixation

For securing against dislocation during the installation process, the components need to be fixated with appropriate clamping or the GF Piping Systems' fixation tool.

Success Stories

COOL-FIT is an innovative system designed for versatile use in cooling applications. It combines corrosion and maintenance-free components with factory pre-insulation in a reliable and efficient system. Safe, easy and quick to install, this system is ideal for chilled water, glycol and brine applications.

.

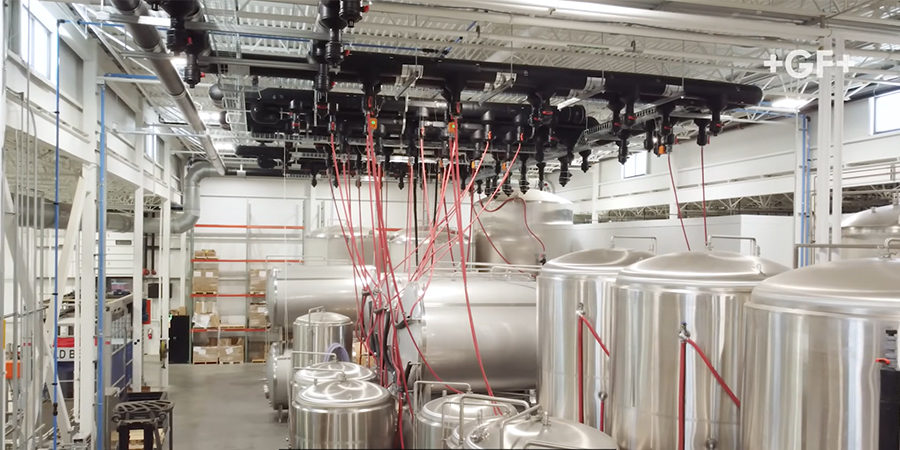

Charlton, MA

Leak-free solution for elite craft brewery

Learn more about why Tree House Brewery continuously chooses COOL-FIT products from GF Piping Systems for its principal brewery facility in Charlton, MA.

.

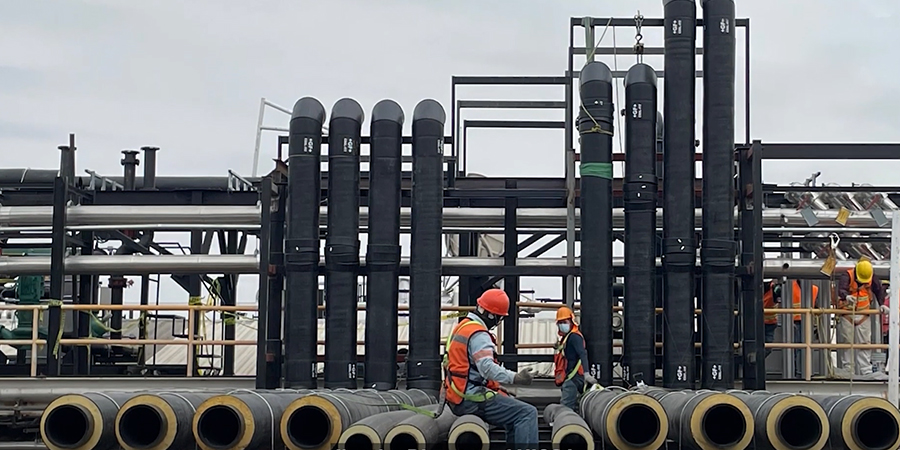

Northern Mexico

Quick installation for a data center

Learn how design-build company, HICSA, used COOL-FIT® PE Plus to combine two large water cooling plants for a data center project in Northern Mexico.

FAQs

For which environments is COOL-FIT® PE Plus designed?

COOL-FIT® PE Plus is designed for secondary cooling loops with media temperature above or below 32°F and for indoor and outdoor as well as underground installations.

Which are the target industries and applications of COOL-FIT® PE Plus?

COOL-FIT PE Plus is specified for Food & Beverage, Industrial Cooling, Pharmaceutical, Commercial Buildings and any chilled water, glycol, and brine applications.

Which support tools are available to ensure a professional pipe systems design?

GF provides technical information, digital libraries, and assisted engineering support during the design and project phases. Training and certification of installers is provided prior to the start of installation.

Speak to an Expert

Specialized Solutions

Engineering

Specialized expertise: Established knowledge, guiding you through

Custom Product Design and Prefabrication

Specialized ideas: Tailored innovation, inspired by you

Digital Libraries

Specialized models: Unlimited collaboration, unleash your creativity

Cooling Tool-Box

Your digital assistant to calculate pressure loss, heat loss, contraction, or temperature loss.
