Lighter in weight, lighter on maintenance requirements, lighter on installation time and labor, and lighter in lifetime system costs. SeaDrain® White is the new best in class piping system solution for black and grey water applications in marine passenger vessels.

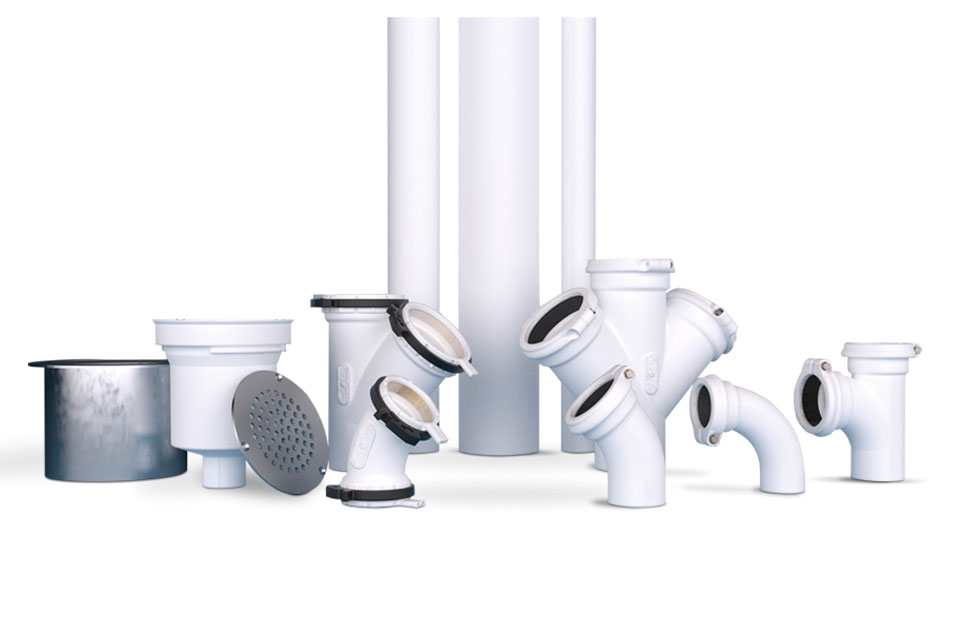

SeaDrain® White was engineered from the beginning with today’s marine drainage applications in mind. Long-term system sustainability and passenger safety were critical considerations in the system design. The complete system ranges in size from 1-1/2” to 6” (DN40 - DN150), and includes all the components required to complete any installation.
SeaDrain® White is suitable for cruise ships, passenger ferries, and luxury yacht installations, in both new build and retrofit construction. As a plastic piping system, SeaDrain® White offers numerous advantages over traditional metal systems and will provide a long, maintenance free life. Installation of the system is eased by the lightweight components, the reduced need for pipe hangers, and the option of two simple joining methods.
The SeaDrain® piping system is manufactured in the USA and approved for use by ABS, DNV-GL, Lloyd’s Register and RINA. It is also NSF-certified and ASTM D635-compliant
SeaDrain’s® bright white external coloring includes additives for UV resistance against discoloration, negating the need for external paint. Therefore, both pleasing aesthetics and reduced work hours are achieved across an install of up to 24,000 ft of balcony piping alone.
With a single tool, Fast-Lock® is quick and easy to install for line sizes 4” (DN100) and below. Automated electrofusion is available in all sized 1½” (DN40) to 6” (DN150).
With multiple jointing options, SeaDrain® White makes it easy to transition between food prep (USPH) and general use application spaces.
SeaDrain® is produced from a light, flexible, tough and corrosion-free high-performance polymer. To reduce the risk of bacterial contamination of the ship, factory tests in excess of 100 psi have been conducted.
Sturdy and lightweight, plastic pipes are ideal for use in a wide range of applications. Versatile yet durable, these all-rounders offer exceptional reliability and proven quality.
Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.
Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.
Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.
Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded or mechanically connected to create a pressure-tight joint.
Flange connections are often the best mechanical connection between pipe segments or for installing valves up to very big dimensions.
Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.
When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.
Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust.
Robust, lightweight and practical, the MSA 2 series features a barcode scanner, a cooling system for multiple jointing operations and ample internal memory for storing records. An intuitive interface gives the operator a clear overview at all times.
Designed for stress-free installation with minimal movement during the welding and cooling process, these tools can be clamped into position with ease. The GF Piping Systems range includes multiple innovative variants for maximum practicality.
We provide a wide range of accessories to support your installation projects. Accessories are available for use throughout the life-cycle of your system and available in an agreed time-frame.
