Industries have been assessed clean-up expenditures which far exceed the costs to install protective measures. When penalties and fines are added to the costs of cleaning up spills and leaks, it becomes obvious that industries have a legal and financial responsibility for protecting our environment.
Contain-It™ provides the necessary environmental protection at a fraction of potential clean-up costs. The system includes many features which yield benefits to the owner, engineer and installer.

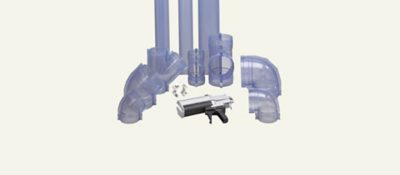

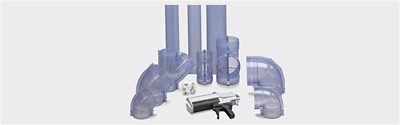

The retrofit capability and chemical resistance of Contain-It™ makes this an ideal choice for containment piping of chemical process lines.
- 3" - 6"
- 32 PSI (2.2 bar)
- 0°C - 60°C (32°F - 140°F)
- Clear Polyvinyl Chloride (Clear PVC)
When combined with GF’s variety of primary piping systems, the Contain-It system is suitable for virtually any piping application, from pressure process lines to drainage waste systems; we have you covered.
Split rigid or flexible termination fittings seal the containment system to the primary piping systems, while centralizers center and support a wide range of carrier pipes sizes from IPS, Metric and CTS to name just a few.
Contain-It requires less equipment to install than other double containment systems, as you will not have to align any seals or hinges, making it a cost-effective and simple solution.
The transparent design allows you to inspect above-ground piping systems without having to rely on expensive leak detectors, saving you time, effort and money.
GF SmartPro transmitters and Multi-Parameter controller are available for your process applications: The 9900 is a single-channel transmitter available as a panel or field mount, whilst the 9950 two-channel controller supports two sensors of same or different types in one instrument.
Sturdy and lightweight, plastic pipes are ideal for use in a wide range of applications. Versatile yet durable, these all-rounders offer exceptional reliability and proven quality.
Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.
Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.
Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.
Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded or mechanically connected to create a pressure-tight joint.
Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.
When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.
With GF Piping Systems boxes, pipes can be replaced easily without damaging the wall thanks to the flexible box feet.
Termination fittings represent the beginning and the end of a double containment system and seal the monitoring room. For complex isometrics, end fittings are used to segment the monitoring room.
Designed for stress-free installation with minimal movement during the welding and cooling process, these tools can be clamped into position with ease. The GF Piping Systems range includes multiple innovative variants for maximum practicality.
We provide a wide range of accessories to support your installation projects. Accessories are available for use throughout the life-cycle of your system and available in an agreed time-frame.
