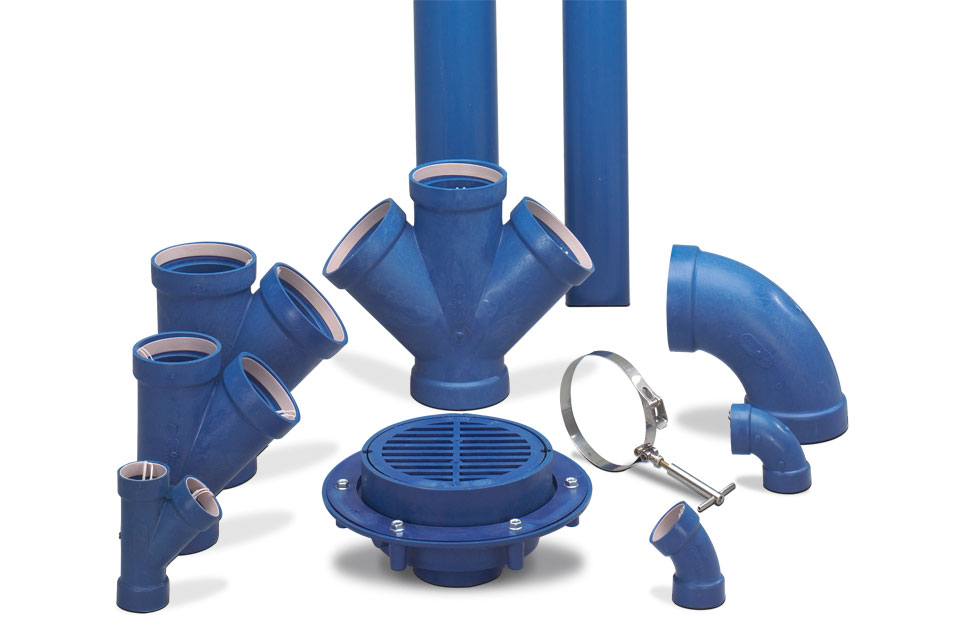

Fuseal 25/50™ is engineered to solve many of the problems with return air plenum piping or handling aggressive chemicals at elevated temperatures. Thermal stability as well as a low flame spread and smoke density as per UL 724 (ASTM E84).

High Temperature Service

Fuseal 25/50 PVDF handles corrosive drainage fluids up to 284°F (140°C).

Low Installation Costs

The system is quick and easy to install with GF’s electrofusion technology offering the simplest of installation procedures.

Material options

Fuseal 25/50 PVDF system uses Polyvinylidene Fluoride (PVDF) material, which is considered non-combustible as defined in UL 723. This material provides a very broad range of chemical resistance as well as a low flame spread and smoke density.

Broad Range of Fittings

The system has one of the largest fitting offerings in the industry and features numerous transition possibilities to metal, glass and other piping system materials.

Plastic Pipes

Sturdy and lightweight, plastic pipes are ideal for use in a wide range of applications. Versatile yet durable, these all-rounders offer exceptional reliability and proven quality.

Adapters & Transitions

Adapters and transitions are essential for connecting metal with plastic pipes or even two plastic pipes. This range covers multiple materials and offers reliable connections while offering high flexibility during assembly.

Bends & Elbows

Bends and elbows are essential fittings that easily change the direction of pipes. The extensive range available offers not only multiple materials but also different curvature degrees to easily fit your piping system.

Caps & End Caps

Caps provide a tight seal and stop the flow direction of a piping system. GF Piping System caps are available in different dimensions, different plastic materials and malleable iron to fit all of your needs. Temporary caps ease the pressure testing of an installed pipeline.

Couplers & Sockets

Simplify the pipe installation process with couplers and sockets. Specially designed to slide easily over pipes with no extra equipment required, they are cemented, welded or mechanically connected to create a pressure-tight joint.

Flange Connections

Flange connections are often the best mechanical connection between pipe segments or for installing valves up to very big dimensions.

Installation Fittings

GF Piping Systems has an extensive range of installation fittings available in a wide range of materials, ensuring secure and accurate positioning of sensors and electrodes for exceptional performance. The fittings match perfectly with all GF Signet products and are key for the easy installation of measurement equipment.

Reducers

Reducers are used for effecting a smooth transition between two pipes or fittings with different dimensions. The wide selection available covers an exceptionally diverse area of applications. They are available in short or long versions and in centric or excentric versions.

Tees, Y-Pieces and Crosses

When creating branch lines, lightweight tee, wye, and cross fittings make installation much easier. These fittings are made from a range of materials and malleable iron and cover multiple dimension possibilities including various reductions on the same fitting.

Unions

Unions are the best mechanical connection between pipe segments and for installing all kinds of components up to the dimensions of d110/DN100. Unions are available in a wide range of materials and jointing options. The connection is fast and very robust.

Strainers

Designed to protect sensitive components in piping systems, strainers filter out pollutants from the media. This extends the system’s service life, reduces maintenance, improves operation and minimizes additional expenditure.

Clamping and Installation Tools

Designed for stress-free installation with minimal movement during the welding and cooling process, these tools can be clamped into position with ease. The GF Piping Systems range includes multiple innovative variants for maximum practicality.

Accessories

We provide a wide range of accessories to support your installation projects. Accessories are available for use throughout the life-cycle of your system and available in an agreed time-frame.
