All in one solution

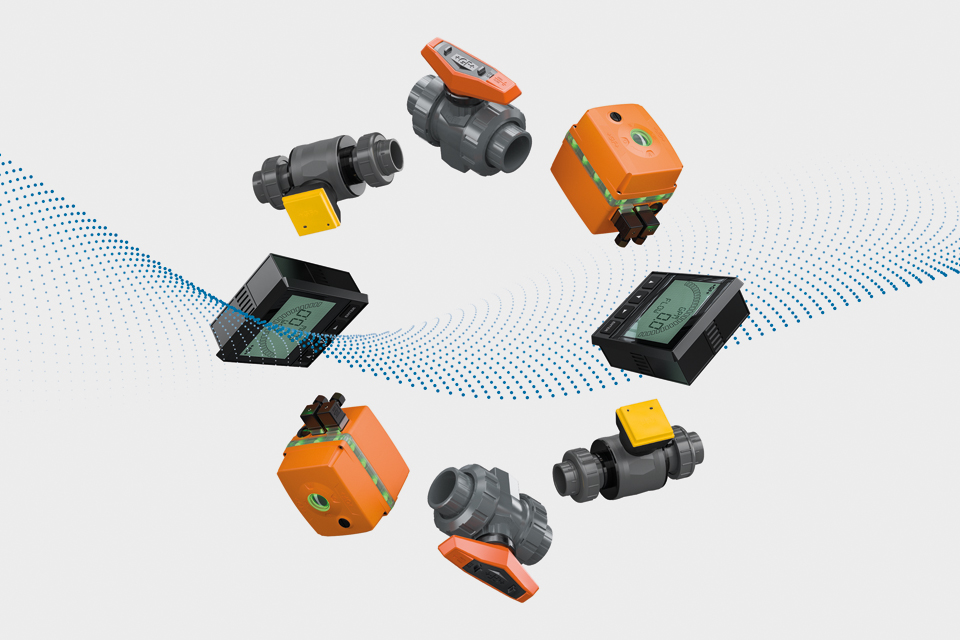

The matched solution between the new Pneumatic Actuator, the Ball Valve 546 Pro, and the Electro-pneumatic Positioner

GF Piping Systems new Pneumatic Actuator is made entirely from plastic, maintenance-free, and has a lifetime as long as the entire piping system. It covers a broad spectrum of valves to suit every need. Thanks to its lighter, more compact design, planning and installation are easier and more efficient. Thanks to the integrated NAMUR interfaces, additional accessories such as Electro-pneumatic Positioners and Solenoid Valves enable end-users to widen the functionality and automation level of the valve assembly. Process Automation, therefore, offers the complete product range as the full solution supplier.

  • Electro-pneumatic Positioner for rotary actuators
    Precise control: The Electro-pneumatic Positioner was designed and tested for the new Pneumatic Actuator. Enabling 100% system flexibility, quick assembly, and easy commissioning.

  • Pneumatic Actuator
    The pneumatic actuators are considerably more compact than earlier models and therefore support compact installation with tighter spacing of PP-GF pipes, leaving more space in order to install all necessary components more easily.
  • Ball Valve 546 Pro
    Flexible sizing to find the right fit - The new design of the interface between the Ball Valve 546 Pro and the Pneumatic Actuator range enable users to find the right fit in terms of torque and size even in low-pressure applications. Choose from standard configurations or contact GF Piping Systems for customized assemblies.

  • Electro-pneumatic Positioner for stroke actuators
    Compact top-mount positioner tested and optimized for GF Piping Systems diaphragm valves type DIASTAR.

  • Diaphragm valve type DIASTAR
    Designed to optimize the flow profile of the liquid inside the pipe, these valves are made entirely of plastic for excellent durability and reliability. The modular design allows them to be easily adapted to process conditions.

Pneumatic Actuator

The new Pneumatic Actuator by GF Piping Systems covers a broad spectrum of valves to suit every need. Thanks to its lighter, more compact design, planning and installation are more accessible and more efficient. The Pneumatic Actuator is protected by a cover made from high-quality and corrosion-free polypropylene (PP-GF) and is supplied in optimal combination with the valve.

All in one solution

The perfect valve pack. The Electro-pneumatic Positioner was tuned and tested with the Pneumatic Actuator and the Ball Valve 546 Pro. Thanks to the perfect alignment, precise fl ow control becomes simple. Additionally, an auto-tune function ensures quick commissioning. The Pneumatic Actuator and the Electro-pneumatic Positioner are also available for diaphragm valves type DIASTAR.

Set and forget

Thanks to high-performance plastics, there are no maintenance requirements for GF Piping Systems newest Pneumatic Actuator, including in highly corrosive environments. This reduces the renewal and planning requirements of the site for at least 25 years and simplifies future tasks. The Pneumatic Actuator is designed to achieve a minimum of 250.000 cycles and to work smoothly, even after long periods without operation.

Powerful and lightweight

This actuator has a plastic housing (instead of metal) and is more compact than earlier models. On average, this makes them up to 8% lighter. The low weight further reduces static demands so that costly reworks of the existing piping system can be avoided.

Custom-fit to your requirements

The range of our new Pneumatic Actuators covers more than twice as many combination possibilities compared to conventional actuators. The actuator can be perfectly tailored to suit every need in order to reduce unnecessary weight and space usage, providing ideal installation design. Engineered to offer the right balance between size, torque, and compressed air supply pressure and was designed for compressed air systems from 4.2 to 5.6 bar without compromising on safety.

Up to 27% smaller

The pneumatic actuators are considerably more compact than earlier models and therefore support compact installation with tighter spacing of PP-GF pipes, leaving more space in order to install all necessary components more easily.

Further accessories

GF Piping Systems new Electro-pneumatic Positioner line ensures a safe and high-class control and regulation function of all pneumatically actuated valves.

A positioner is not only the connection between the actuator and the process it is the gateway to digitalization. Communication interfaces like PROFINET and EtherNet/IP (Q1/22), and analog and binary feedback ensure state-of-the art integration standards and will lead the way to a digital and process data driven future.

Solenoid pilot valves are used to open and close pneumatic actuated valves by pilot controlling the pneumatic actuators. With these, it is possible to switch large valves with low power and less compressed air, as only a small coil needs to be energized and a small working chamber is filled with compressed air.

Solenoid Valves
≤ DN 65
> DN 65
Solenoid Valves ≤ DN 65 > DN 65
Single acting actuators (FC/FO)

PV94

MNL532

PV95

MNL532

Double acting actuators (DA)

MNL532

5470

MNL532

5470
