COOL-FIT: Certified sustainability for marine cooling applications
With approvals by DNV, RINA, Lloyds Register, and Bureau Veritas, COOL-FIT has already changed the planning, installation, and operation of cooling applications on ships. The entirely pre-insulated plastic piping system is a lightweight, long-lasting, and cost-effective solution for air conditioning and refrigeration onboard. Now, COOL-FIT has been assessed with an Environmental Product Declaration (EPD).
As the marine industry strives to become more sustainable, shipbuilders, owners, and operators require modern technology that helps them reduce CO2 and greenhouse gas emissions. In 2022, a study commissioned by GF Piping Systems and conducted by the ship design and engineering specialist Foreship showed that COOL-FIT, the company’s pre-insulated plastic piping system, is helping ship owners and operators to save fuel, reduce emissions, and lower costs.
For added transparency, the company has now assessed the COOL-FIT range with an EPD in accordance with ISO 14025 and EN 15804. An EPD is a standardized, third-party verified document that uses scientifically quantified data from Life Cycle Assessments to estimate environmental impacts and enable comparisons between similar products.
In addition to sustainability and performance, the COOL-FIT range also offers a number of new components that address the specific needs of the marine industry. When ships are built using individually assembled sections, a sliding coupler allows pre-installed piping systems to be quickly connected. Similarly, the sliding coupler also simplifies the process of retrofitting sections of pipe on existing ships. The COOL-FIT Fixpoint kit, on the other hand, is designed as a solution for the high loads often encountered on large ships with pipe dimensions over DN140 and a length exceeding 50 meters. It is capable of withstanding three times the forces of a standard fixpoint.
Daniel Dossenbach, Head of Global Product Management Cooling at GF Piping Systems is proud of COOL-FIT’s performance in the industry: “We have already shown that COOL-FIT makes ships more efficient and sustainable. With our EPD certification we now also provide transparent information on the environmental performance of the system itself, which benefits the customer. Combined with COOL-FIT products that are specifically designed for the high demands onboard, we believe that we can offer the marine industry a flexible and complete cooling solution that plays a valuable role in achieving their sustainability goals.”

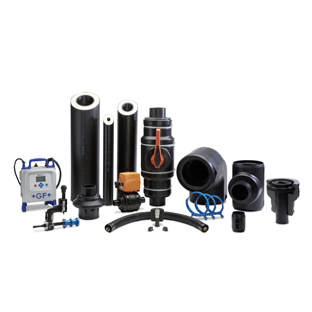

COOL-FIT is a completely pre-insulated plastic piping system consisting of pipes, fittings, valves, flexible hoses, and tools. They can be implemented in secondary refrigeration and air conditioning applications using chilled water, as well as glycol, ethanol, and brine in the -50°C to +60°C temperature range. Thanks to the factory-installed pre-insulation of the plastic components and the vaporproof construction, the system facilitates 30% better insulation performance within the cooling circuit compared to a traditional post-insulated piping system made of metal. Furthermore, it is 60% lighter than post-insulated metal systems and can be installed 50% faster thanks to electrofusion jointing technology. Through the application of corrosion-free materials, COOL-FIT has a service life of 25 years and therefore saves resources that would otherwise be necessary for maintenance, repairs, or replacements.
Meet GF Piping Systems at Nor-Shipping 2023 from 6 to 9 June in Oslo, Norway, at booth D01-08.
COOL-FIT is a pre-insulated plastic piping system for air conditioning and refrigeration applications and features components specifically designed for the demands of the marine industry.
