Requirements
ASTM D2513, ASTM F2509, ASTM F1948, DOT/CFR Part 192 and ANSI B1-20.1
Certificate: IAPMO
Reference Documents: NFPA 58, PPI TR-19, ANSI B31.8 and UL 360
Features and Benefits

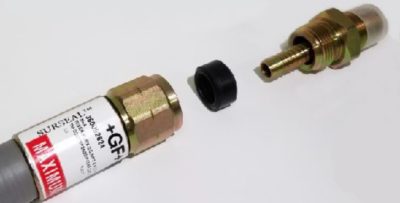

- SurSeal service head risers feature a positive stop nut design; eliminating the need for torque requirements
- Easily assembled on-site with a pipe or adjustable wrench

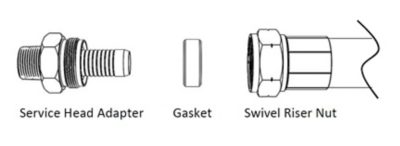

- The molded rubber gasket forces the cold flow of plastic tubing for unmatched holding force
- One solid service line from main to above-ground connection
- Eliminates underground connections
- Self-aligning integral grooved stiffener
Stab Depth Chart
Pipe Size
Stab Depth
Wall
| Pipe Size | Stab Depth | Wall |
| 1/2 CTS | 7/8" | 0.090" |
| 3/4 IPS | 1" | DR11 |
| 1 CTS | 1" | 0.099" / 0.102" |
| 1 IPS | 1-1/4" | DR11 |
| 1-1/4 IPS | 1-1/4" | DR10 |
| 1-1/4 IPS | 1-1/4" | DR11 |
| 1-1/2 IPS | 1-3/8" | DR11 |
| 2 IPS | 1-1/2" | DR11 |
Part Numbers
Part Number
Description
| Part Number | Description |
| 360092824 | SHA RISER,FLEX,0.5,MPT,0.5,CTS,.090 |
| 360063044 | SHA RISER,FLEX,0.75,MPT,0.5,CTS,.090 |
| 360063045 | SHA RISER,FLEX,0.75,MPT,0.75,IPS,DR11 |
| 360063047 | SHA RISER,FLEX,0.75,MPT,1,CTS,.099/.102 |
| 360063046 | SHA RISER,FLEX,1,MPT,0.75,IPS,DR11 |
| 360063048 | SHA RISER,FLEX,1,MPT,1,CTS,.099/.102 |
| Coming Soon... | |
| SHA RISER,FLEX,1,MPT,1,IPS,DR11 | |
| SHA RISER,FLEX,1.25,MPT,1.25,IPS,DR11 | |
| SHA RISER,FLEX,1.25,MPT,1.25,IPS,DR10 | |
| SHA RISER,FLEX,1.5,MPT,1.5,IPS,DR11 | |
| SHA RISER,FLEX,2,MPT,2,IPS,DR11 | |
